Hard-braking events as indicators of road segment crash risk

Traffic safety evaluation has traditionally relied on police-reported crash statistics, often considered the "gold standard" because they directly correlate with fatalities, injuries, and property damage. However, relying on historical crash data for predictive modeling presents significant challenges, because such data is inherently a "lagging" indicator. Also, crashes are statistically rare events on arterial and local roads, so it can take years to accumulate sufficient data to establish a valid safety profile for a specific road segment. This sparsity paired with inconsistent reporting standards across regions complicates the development of robust risk prediction models. Proactive safety assessment requires "leading" measures: proxies for crash risk that correlate with safety outcomes but occur more frequently than crashes.

In "From Lagging to Leading: Validating Hard Braking Events as High-Density Indicators of Segment Crash Risk", we evaluate the efficacy of hard-braking events (HBEs) as a scalable surrogate for crash risk. An HBE is an instance where a vehicle’s forward deceleration exceeds a specific threshold (-3m/s²), which we interpret as an evasive maneuver. HBEs facilitate network-wide analysis because they are sourced from connected vehicle data, unlike proximity-based surrogates like time-to-collision that frequently necessitate the use of fixed sensors. We established a statistically significant positive correlation between the rates of crashes (of any severity level) and HBE frequency by combining public crash data from Virginia and California with anonymized, aggregated HBE information from the Android Auto platform.

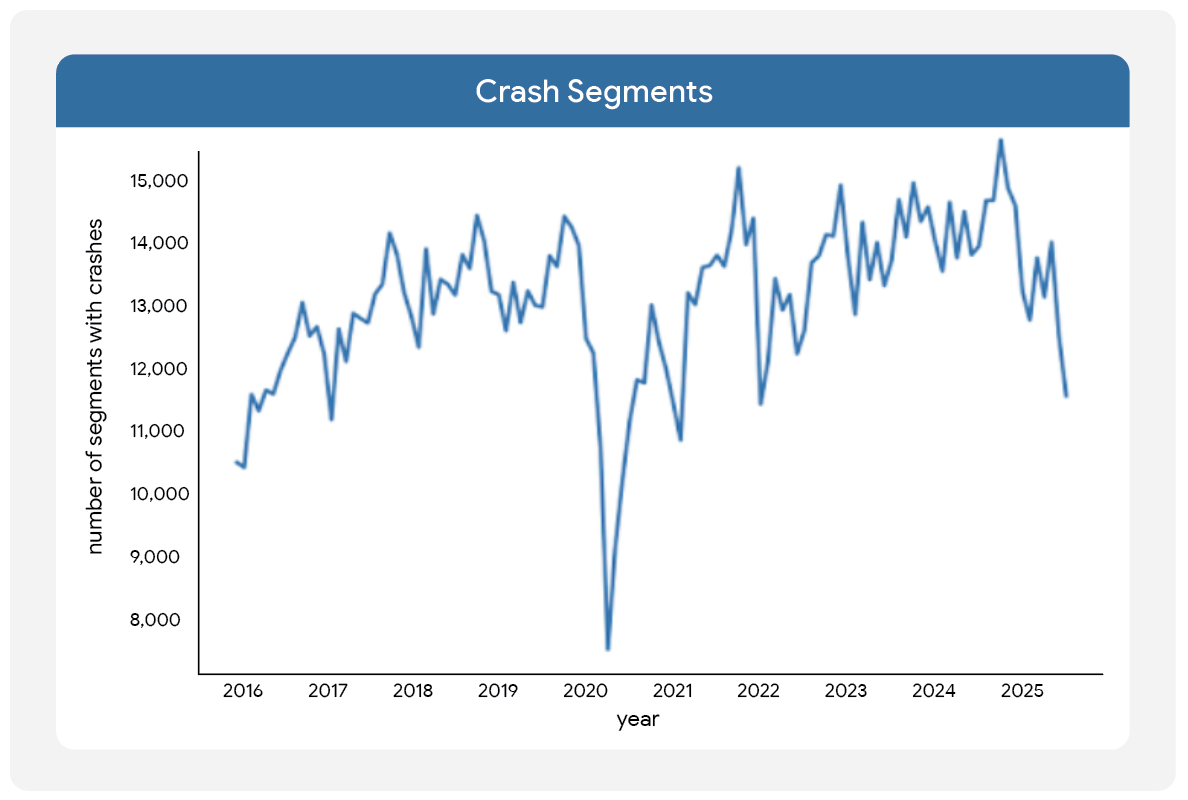

To validate the utility of this metric, we analyzed 10 years of public crash data alongside aggregated HBE measurements. The immediate advantage of HBEs is the density of the signal. Our analysis of road segments in California and Virginia revealed that the number of segments with observed HBEs was 18 times greater than those with reported crashes. While crash data is notoriously sparse — requiring years to observe a single event on some local roads — HBEs provide a continuous stream of data, effectively filling the gaps in the safety map.

The core objective was to determine if a high frequency of HBEs causally links to a high rate of crashes. We employed negative binomial (NB) regression models, a standard approach in the Highway Safety Manual (HSM), to account for a higher degree of variance than is typically found in crash data.

Our model structure controlled for various confounding factors, including:

• Exposure: Traffic volume and segment length.
• Infrastructure: Road type (local, arterial, highway), slope, and cumulative turning angle.
• Dynamics: Presence of ramps and change in the number of lanes.

The results demonstrated a statistically significant association between HBE rates and crash rates across both states. Road segments with higher frequencies of hard braking consistently exhibited higher crash rates, a relationship that holds true across different road types, from local arterials to controlled-access highways.

The regression analysis also quantified the impact of specific infrastructure elements. For instance, the presence of a ramp on a road segment was positively associated with crash risk in both states, likely due to the weaving maneuvers required for merging.

To visualize the practical application of this metric, we examined a freeway merge segment in California connecting Highway 101 and Highway 880. Historical data indicates this segment has an HBE rate approximately 70 times higher than the average California freeway, and averaging a crash every six weeks for a decade.

When analyzing the connected vehicle data for this location, we found that it ranked in the top 1% of all road segments for HBE frequency. The HBE signal successfully flagged this outlier without relying on the decade of crash reports it took to statistically confirm the risk. This alignment validates HBEs as a reliable proxy capable of identifying high-risk locations even in the absence of long-term collision history.

Validating HBEs as a reliable proxy for crash risk transforms a raw sensor metric into a trusted safety tool for road management. This validation supports the use of connected vehicle data for network-wide traffic safety assessment, offering enhanced spatial and temporal granularity. While these results indicate utility for road segment risk determination, they do not draw conclusions about location-independent driving behavior risk.

The Mobility AI team at Google Research is working with Google Maps Platform to externalize these HBE datasets as a part of Roads Management Insights offering. By integrating these high-density signals, transportation agencies can access aggregated, anonymized data that is substantially more fresh and that covers a wider breadth of the road network compared to traditional crash statistics. This allows for the identification of high-risk locations using leading indicators rather than relying solely on lagging and sparse collision records.

While this study confirms that HBEs are a robust leading indicator of crash risk, there are opportunities to further refine this signal. We are currently investigating mechanisms to spatially cluster homogenous road segments to reduce data sparsity even further. Addressing these limitations will enable the transition from risk identification to targeted engineering, where high-density data informs specific infrastructure interventions ranging from signal timing adjustments and improved signage to the geometric redesign of high-risk merge lanes.

This work was a collaborative effort involving researchers from Google and Virginia Tech. We thank our co-authors Shantanu Shahane, Shoshana Vasserman, Carolina Osorio, Yi-fan Chen, Ivan Kuznetsov, Kristin White, Justyna Swiatkowska, and Feng Guo. We also appreciate the contributions of Aurora Cheung, Andrew Stober, Reymund Dumlao, and Nick Kan in translating this research into practical applications.
